APM32F405/407 Series
Overview
Performance
Selection Tools
Block Diagram
Documentation
Design Resources

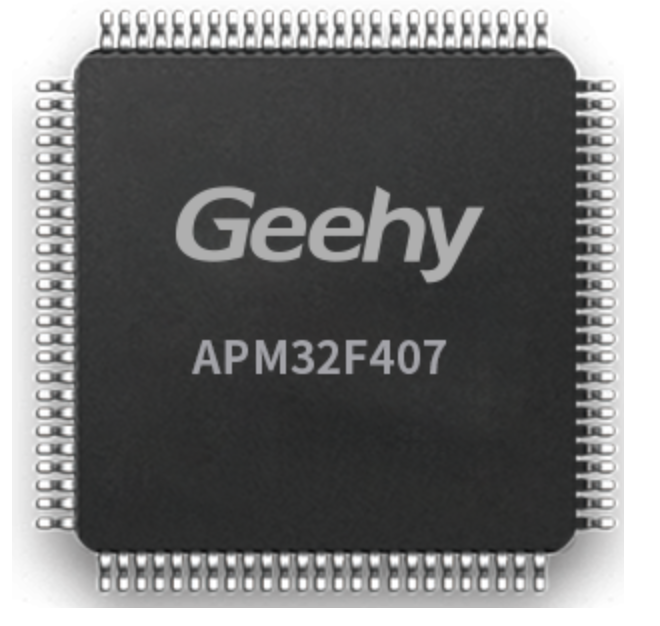

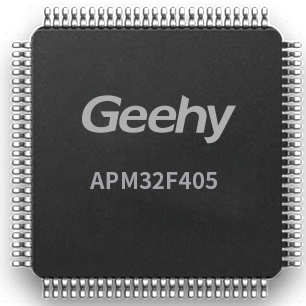

The APM32F405/407 industrial-grade, high-performance MCUs stand out with impressive CPU computing performance, generous storage capacity, and enhanced EMMC capabilities. Designed to meet the requirements of complex program data computing and storage, these MCUs include on-chip PHY high-speed OTG units, a 100Mb Ethernet MAC, and diverse communication peripherals. Together, they provide comprehensive enhancements for diversified control and extensive product connectivity.

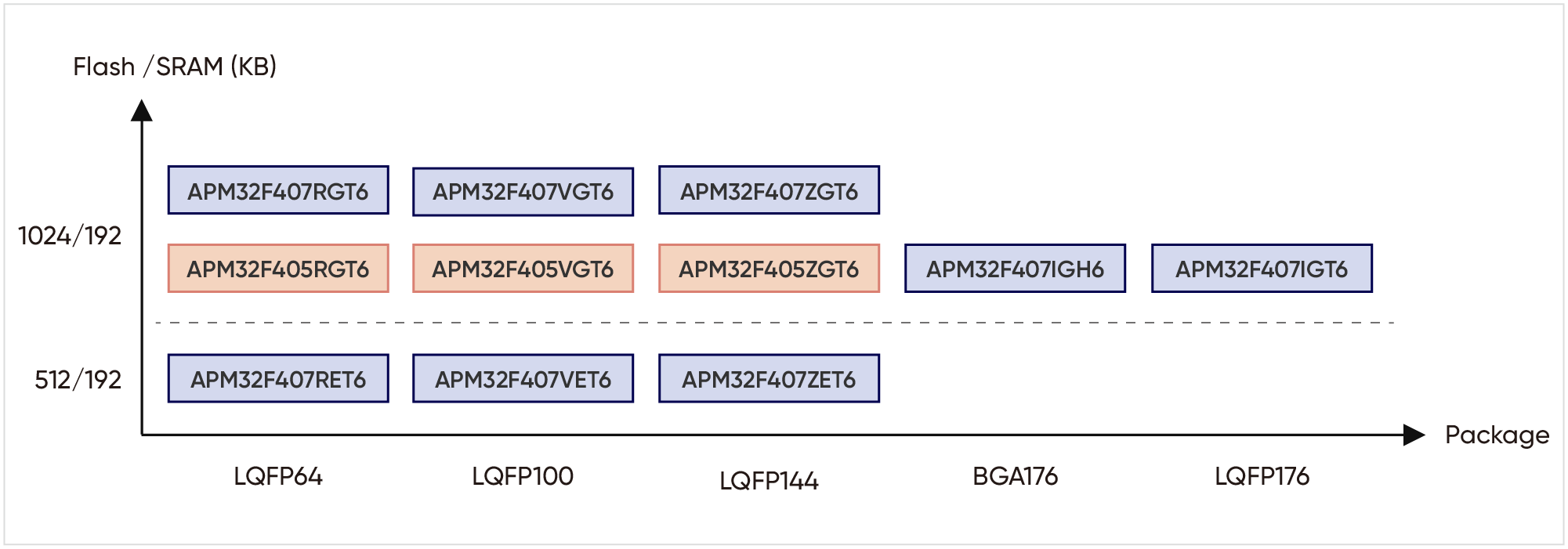

Packaging Roadmap

Performance

System

  • Arm® Cortex® -M4F
  • Working frequency up to 168MHz
  • Support single FPU
  • Support DSP instruction

Memory

  • Flash: 512KB/1MB
  • SRAM: 192KB
  • SDRAM: 2MB(optional)
  • Support external memory extension

Power Consumption

  • VDD/VDDA: 1.8V~3.6V
  • Backup domain power VBAT: 1.65~3.6V
  • Support POR/PDR
  • Support PVD

Timer

  • 16/32-bit universal timer: 8/2
  • 16-bit advanced timer: 2
  • 16-bit basic timer: 2
  • Watchdog timer: 2
  • 24-bit system timer: 1

Analog Peripherals

  • 12-bit ADC: 3, External channel: 24
  • 12-bit DAC: 2

I/O

  • Up to 140 I/Os
  • Map to external interrupt vectors

Debug Mode

  • SWD
  • JTAG

Peripherals

  • U(S)ART: 6
  • I2C : 3
  • SPI : 3
  • I2S: 2
  • DCI: 1(F407)
  • USB OTG: 3
  • CAN: 2
  • SDIO: 1
  • Ethernet: 1(F407)
  • EMMC: 1
  • Support SDRAM

Package

  • LQFP64/100/144/176

Selection Tools

All Products
Reset
Search

Core

Frequency(MHz)

FLASH(KB)

SRAM(KB)

FPU

I/Os

Voltage(V)

Package

GPTMR(16bit)

GPTMR(32bit)

Advanced TMR(16bit)

Basic TMR

Systick(24bit)

IWDT

WWDT

RTC

ADC 12-bit Cell

ADC 12-bit Channels

DAC 12-bit Cell

DAC 12-bit Channels

Analog Comparator

TSC (Channels)

SPI

QSPI

I2S

I2C

U(S)ART

CAN

SDIO

USB Device

CEC

USB OTG_FS

USB OTG_HS

SMC

DCI

DMC

Ethernet

RNG

AES/DES/ TDES

BN/ SM3/SM4

0 results total entry

| Download Spreadsheet
Compare
Part No.
Core
Frequency(MHz)
FLASH(KB)
SRAM(KB)
FPU
I/Os
Voltage(V)
Package
GPTMR(16bit)
GPTMR(32bit)
Advanced TMR(16bit)
Basic TMR
Systick(24bit)
IWDT
WWDT
RTC
ADC 12-bit Cell
ADC 12-bit Channels
DAC 12-bit Cell
DAC 12-bit Channels
Analog Comparator
TSC (Channels)
SPI
QSPI
I2S
I2C
U(S)ART
CAN
SDIO
USB Device
CEC
USB OTG_FS
USB OTG_HS
SMC
DCI
DMC
Ethernet
RNG
AES/DES/ TDES
BN/ SM3/SM4

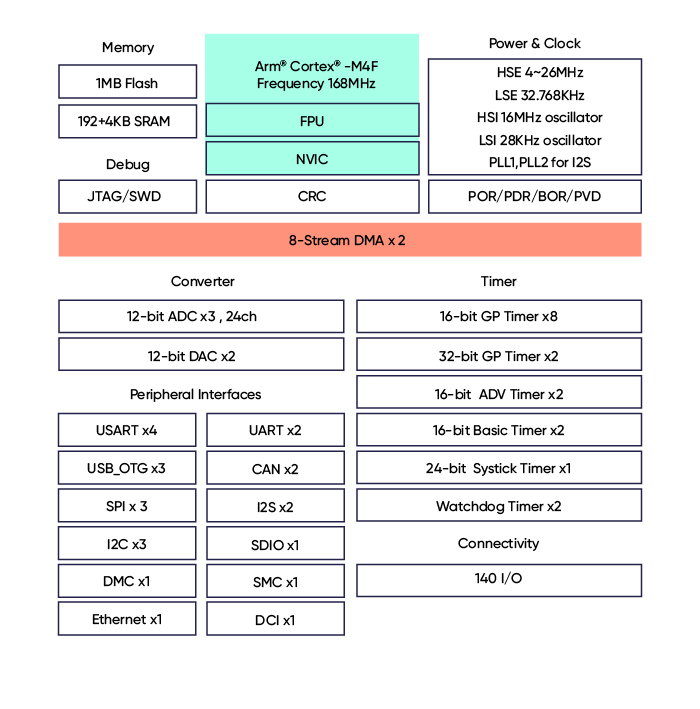

Block Diagram

Documentation
Format Size
APM32F405xG 407xExG C version Datasheet Data Sheets V1.2 pdf 3.26 MB November 24, 2023
APM32F405xG 407xExG datasheet Data Sheets V1.7 pdf 3.05 MB November 24, 2023
APM32F4xxx User Manual User Manuals V2.2 pdf 11.66 MB November 24, 2023
AN1081_APM32F4xx_APM32F4xx_Quick Start Guide Application Notes V1.0 pdf 1.62 MB August 04, 2022
AN1082_APM32F4xx_APM32F4xx_SDRAM Application Note Application Notes V1.0 pdf 510.86 KB August 04, 2022
AN1083_APM32F4xx_APM32F4xx_ADC Application Note Application Notes V1.0 pdf 899.34 KB August 04, 2022
AN1084_APM32F4xx_IAP Application Note Application Notes V1.0 pdf 1.41 MB August 04, 2022
AN1085_APM32F4xx_APM32F4xx_Download and Burning Application Notes V1.1 pdf 1.12 MB April 03, 2023
AN1086_APM32F4xx_ISP Application Note Application Notes V1.0 pdf 1.69 MB February 09, 2023
AN1087_APM32F4xx_OTG Application Note Application Notes V1.0 pdf 1.07 MB February 09, 2023
AN1088_APM32F4xx Series ETH Transplantation LWIP Application Notes V1.0 pdf 1.27 MB February 09, 2023
AN1089_APM32F407_RTOS Routine Application Note Application Notes V1.0 pdf 1011.05 KB February 09, 2023
AN1091_APM32F4xx_APM32F4xx Series TSensor demo Routine Application Notes V1.0 pdf 516.58 KB April 13, 2023
AN1092_APM32F4xx_SMC_SRAM Application Note Application Notes V1.0 pdf 897.77 KB July 13, 2023
AN1094_APM32F4xx_Application Note of APM32F4xx Flash Simulating EEPROM Application Notes V1.0 pdf 756.55 KB July 13, 2023
AN1101_APM32F4xx_CRC Application Note Application Notes V1.0 pdf 1.04 MB August 08, 2023
AN1104_APM32F4xx Series Software Simulating USART Application Notes V1.0 pdf 1.06 MB September 21, 2023
AN1105_APM32F407 TMR1 Modulated Breathing LED Application Notes V1.0 pdf 914.55 KB October 25, 2023
APM32F407IG EVAL Schematic Diagram Development Board Schematics V1.1 zip 1.77 MB December 05, 2023
APM32F407VG EVAL Schematic Diagram Development Board Schematics V1.1 zip 1.73 MB December 05, 2023
APM32F407IG TinyBoard Schematic Diagram Development Board Schematics V1.0 pdf 1.62 MB November 23, 2023
APM32F407IG MINIBOARD Schematic Diagram Development Board Schematics V1.0.0 pdf 39.35 KB February 06, 2023
APM32F407VG MINIBOARD Schematic Diagram Development Board Schematics V1.0.0 pdf 31.91 KB February 06, 2023
APM32F407 EVAL Board User Manual Development Tool Manuals V1.0 pdf 1.6 MB February 27, 2023
APM32F407IG TinyBoard User Manual Development Tool Manuals V1.0 pdf 683.51 KB April 06, 2023
APM32F407IG MINI Board User Manual Development Tool Manuals V1.1 pdf 736.47 KB April 28, 2022
APM32F407VG MINI Board User Manual Development Tool Manuals V1.1 pdf 692.26 KB April 28, 2022

Design Resources

Hardware Development Tools
Product

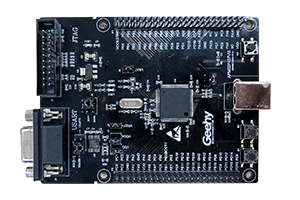

APM32F407IG MINI Board Development Board
APM32F407VG MINI Board Development Board

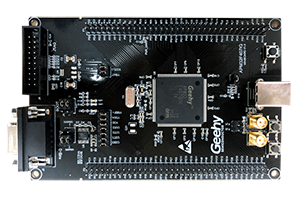

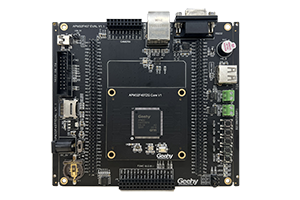

APM32F4xx Evaluation Board Development Board

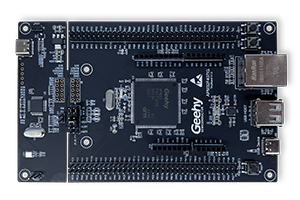

APM32F407 TINY Board Development Board

Software Development Tools
Format Size
GeehyProg SetUp Programmer/DFU V1.0 msi 6.58 MB November 20, 2023
APM32_USB_SDK SDKs V1.1 zip 9.45 MB January 05, 2024
APM32F4xx_DAL_SDK SDKs V1.0 zip 53.75 MB November 17, 2023
APM32F4xx_DFP Pack SDKs V1.0.4 pack 6.57 MB December 11, 2023
APM32F4xx_EVAL_SDK SDKs V1.0 zip 4.57 MB June 15, 2022
APM32F4xx_SDK SDKs V1.4 zip 48.42 MB December 12, 2023
