APM32F105/107 Series
Overview
Performance
Selection Tools

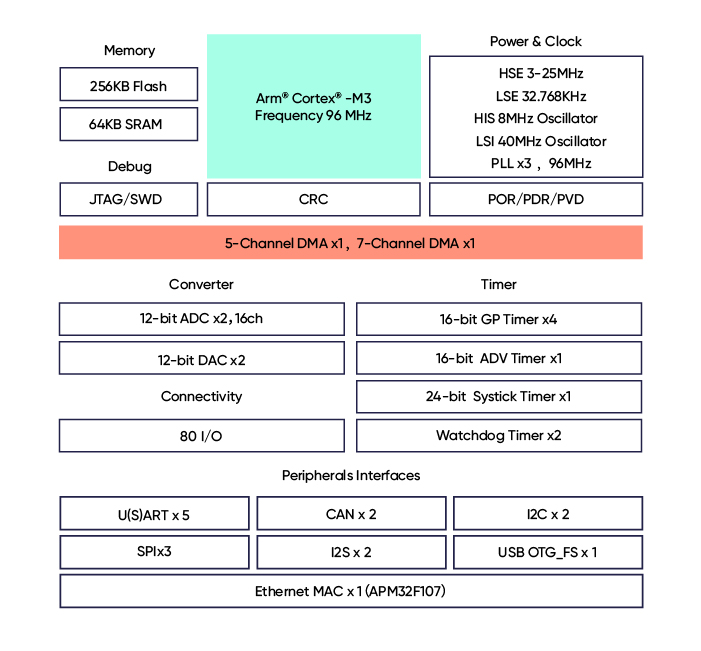

Block Diagram
Documentation
Design Resources

The APM32F105/107 industrial-grade MCUs excel in communication with dual CAN buses and USB OTG_FS. Equipped with a built-in Ethernet MAC controller compatible with the IEEE 802.3-2002 protocol, it supports Ethernet LAN communication via MII or RMII. This series is specifically designed to enhance connectivity, transmission, and real-time performance innovations, providing exceptional communication and networking capabilities for user products.

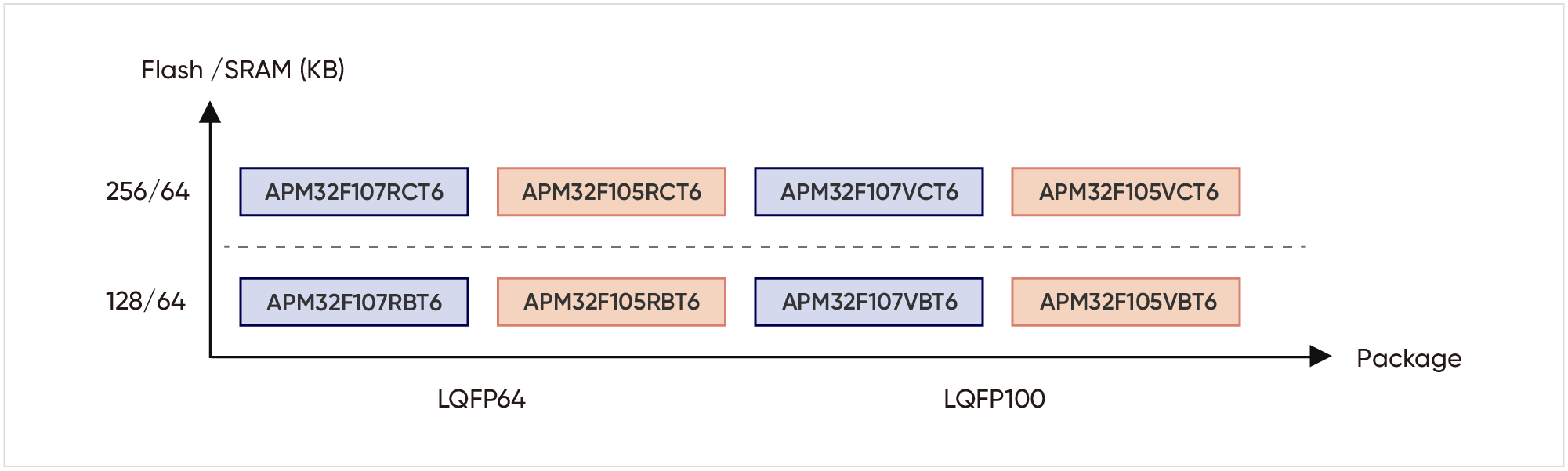

Packaging Roadmap

Performance

System

  • Arm® Cortex® -M3
  • Working frequency up to 96MHz
  • Built-in CRC and RTC, DMAs-12

Memory

  • Flash: 64~256KB
  • SRAM: 64KB

Power Consumption

  • Operating voltage range: 2.0V~3.6V
  • Support POR/PDR/BOR
  • Support PVD

Timer

  • 16-bit universal timer: 4
  •  16-bit advanced timer: 1
  • 16-bit basic timer: 2
  • Watchdog timer: 2
  • 24-bit system timer: 1

Analog Peripherals

  • 12-bit ADC: 2, External channel: 16
  • 12-bit DAC: 2, dual channel

I/Os

  • Up to 80 I/Os
  • All I/Os are mappable on external interrupt vectors

Debug Mode

  • JTAG
  • SWD

Peripherals

  • U(S)ART : 5
  • I2C :1/2
  • SPI : 3
  • I2S : 2
  • DCI : 1(F417)
  • USB OTG_FS : 1
  • Ethernet: 1(F107)

Package

  • LQFP64/100

Selection Tools

All Products
Reset
Search

Core

Frequency(MHz)

FLASH(KB)

SRAM(KB)

FPU

I/Os

Voltage(V)

Package

GPTMR(16bit)

GPTMR(32bit)

Advanced TMR(16bit)

Basic TMR

Systick(24bit)

IWDT

WWDT

RTC

ADC 12-bit Cell

ADC 12-bit Channels

DAC 12-bit Cell

DAC 12-bit Channels

Analog Comparator

TSC (Channels)

SPI

QSPI

I2S

I2C

U(S)ART

CAN

SDIO

USB Device

CEC

USB OTG_FS

USB OTG_HS

SMC

DCI

DMC

Ethernet

RNG

AES/DES/ TDES

BN/ SM3/SM4

0 results total entry

| Download Spreadsheet
Compare
Part No.
Core
Frequency(MHz)
FLASH(KB)
SRAM(KB)
FPU
I/Os
Voltage(V)
Package
GPTMR(16bit)
GPTMR(32bit)
Advanced TMR(16bit)
Basic TMR
Systick(24bit)
IWDT
WWDT
RTC
ADC 12-bit Cell
ADC 12-bit Channels
DAC 12-bit Cell
DAC 12-bit Channels
Analog Comparator
TSC (Channels)
SPI
QSPI
I2S
I2C
U(S)ART
CAN
SDIO
USB Device
CEC
USB OTG_FS
USB OTG_HS
SMC
DCI
DMC
Ethernet
RNG
AES/DES/ TDES
BN/ SM3/SM4

Block Diagram

Documentation
Format Size
APM32F107 105xx datasheet Data Sheets V1.0 pdf 2.47 MB September 26, 2023
APM32F107 105xx User Manual User Manuals V1.1 pdf 6.97 MB November 27, 2023
APM32F107VC EVAL Schematic Diagram Development Board Schematics V1.0 pdf 2.23 MB December 14, 2022
APM32F107VC MINIBOARD Schematic Diagram Development Board Schematics V1.0.0 pdf 31.85 KB November 04, 2022
APM32F107 Intlib Package Libraries V1.0 intlib 18 KB December 06, 2023
APM32F107 Pcblib Package Libraries V1.0 pcblib 91 KB December 06, 2023
APM32F107 Schlib Package Libraries V1.0 schlib 21 KB December 06, 2023
APM32F107VC EVAL Board User Manual Development Tool Manuals V1.0 pdf 1.24 MB February 27, 2023
APM32F107VC MINI Board User Manual Development Tool Manuals V1.1 pdf 763.44 KB December 09, 2022

Design Resources

Hardware Development Tools
Product

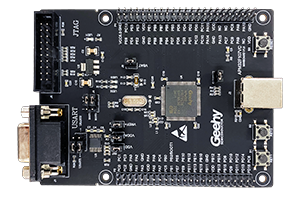

APM32F107VC MINI Board Development Board

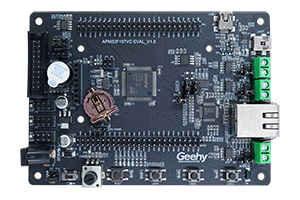

APM32F107VC EVAL Board Development Board

Software Development Tools
Format Size
GeehyProg SetUp Programmer/DFU V1.0 msi 6.58 MB November 20, 2023
APM32_USB_SDK SDKs V1.1 zip 9.45 MB January 05, 2024
APM32F107_EVAL_SDK SDKs V1.0 zip 36.16 MB December 05, 2022
APM32F10x_SDK SDKs V1.8 zip 90.24 MB December 22, 2023
APM32F1xx_DFP Pack SDKs V1.1.0 pack 4.31 MB December 22, 2023
