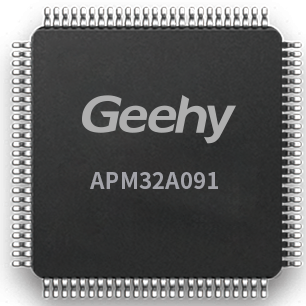

Based on the Arm® Cortex®-M0+ core, the APM32A091 highly cost-effective automotive-grade MCUs deliver low cost, low power consumption, high integration, and robust communication interfaces. Tailored to meet diverse automotive application requirements, these MCUs introduce two programmable analog comparators, one HDMI CEC, and up to 18 capacitive sensing channels, ensuring precise recognition of touch input commands.

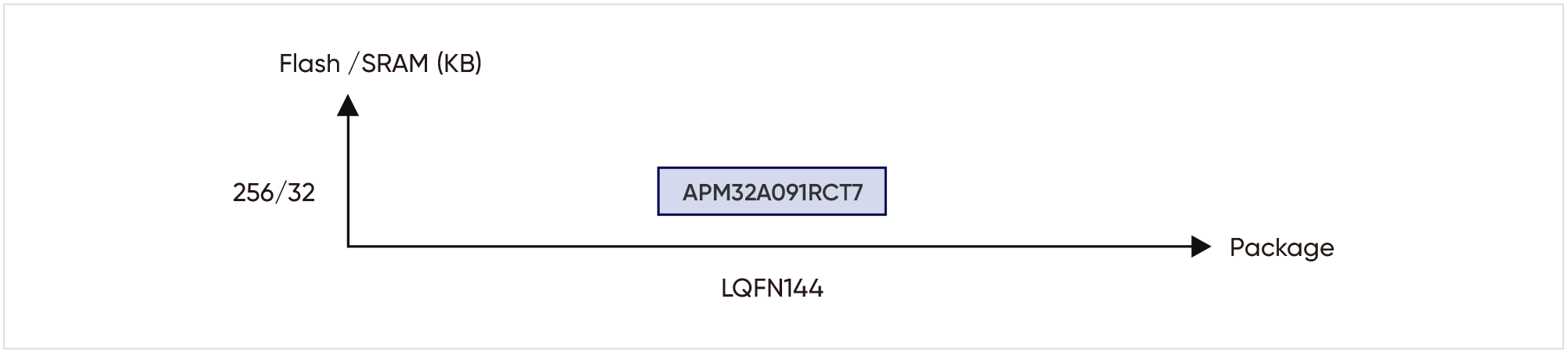

Packaging Roadmap

Performance

System

Arm^® Cortex^®-M0+
Operates at frequency of 48MHz

Memory

Flash 256KB
SRAM 32KB

Power Supply and Reset

Supply voltage：2.0V~3.6V
Support programmable voltage monitor
Support sleep, stop, standby modes
Support POR/PDR

Timer

16/32-bit universal timer: 5/1 16-bit advanced timer: 1 16-bit basic timer: 2 Watchdog timer: 2 24-bit SysTick: 1

Analog peripherals

12-bit ADC: 1; external channel: 16
12-bit DAC: 1; channel: 2
Programmable analog comparator: 2
HDMI CEC: 24

I/Os

51 I/Os
All mappable on external interrupt vectors

Peripheral

USART: 8
I2C: 2
SPI: 2
I2S: 2
CAN: 1
HDMI CEC

Certification level

AEC-Q100 Grade 1

Package

LQFP64

Selection Tools

All Products

Filter

Clear the Filter

0 results total entry

Download Spreadsheet

Compare	Part No.	Core	Frequency(MHz)	FLASH(KB)	SRAM(KB)	FPU	I/Os	Voltage(V)	Package	GPTMR(16bit)	GPTMR(32bit)	Advanced TMR(16bit)	Basic TMR	Systick(24bit)	IWDT	WWDT	RTC	ADC 12-bit Cell	ADC 12-bit Channels	DAC 12-bit Cell	DAC 12-bit Channels	Analog Comparator	TSC (Channels)	SPI	I2S	I2C	U(S)ART	CAN	SDIO	USB Device	CEC	USB OTG_FS	USB OTG_HS	SMC	DCI	DMC	Ethernet	RNG	AES/DES/ TDES	BN/ SM3/SM4

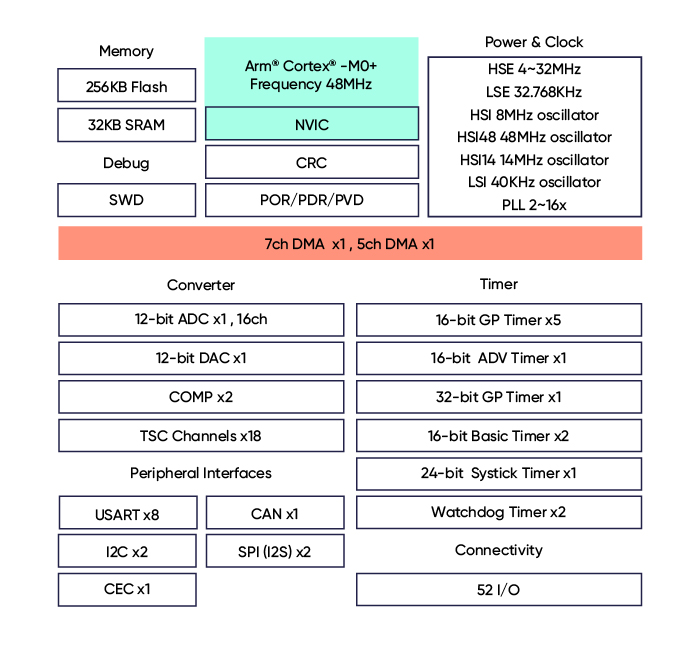

Block Diagram

Documentation

Title	Type	Version	Format	Size	Update Date
APM32A091RCT7 datasheet	Data Sheets	V1.0	pdf	2.4 MB	January 03, 2023
APM32A091RCT7 User Manual	User Manuals	V1.2	pdf	8.7 MB	November 20, 2023
APM32A091RCT7 Intlib	Package Libraries	V1.0	intlib	14 KB	May 05, 2023
APM32A091RCT7 Pcblib	Package Libraries	V1.0	pcblib	73.5 KB	May 05, 2023
APM32A091RCT7 Schlib	Package Libraries	V1.0	schlib	6.5 KB	May 05, 2023

Design Resources

Hardware Development Tools

Title	Type	Product

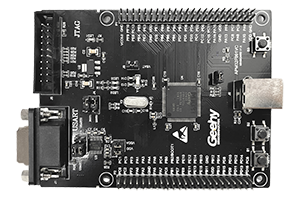

APM32F091VC MINI Board	Development Board

Software Development Tools

Title	Type	Version	Format	Size	Update Date
GeehyProg SetUp	Programmer/DFU	V1.0	msi	6.58 MB	November 20, 2023
APM32A0xx_SDK	SDKs	V1.0	zip	36.44 MB	December 22, 2023
APM32A0xx_DFP pack	SDKs	V1.0.0	pack	1.05 MB	December 22, 2023
APM32_USB_SDK	SDKs	V1.1	zip	9.45 MB	January 05, 2024
